Key highlighted features that can be effective for your requirement.
| CPMRC MODELS | 200/50 | 200/75 | 200/100 | 200/150 |
|---|---|---|---|---|
| Max. Output (kg/hr)* | 20 to 60 | 30 to 100 | 100 to 250 | 100 to 350 |
| Roll Speed (RPM) | 6 to 25 | 6 to 25 | 6 to 22 | 6 to 22 |
| Feed Screw Speed | 10 to 60 RPM | 10 to 60 RPM | 16 to 50 RPM | 16 to 50 RPM |
| Roll Drive Motor | 5 HP | 5 HP | 7.5 HP | 10 HP |
| Feed Screw Drive motor | 2 HP | 2 HP | 3 HP | 3 HP |
| Electrical Supply ** | 7 HP, 3Ø, AC | 7 HP, 3Ø, AC | 10.5 HP, 3Ø, AC | 13 HP, 3Ø, AC |
Similar application range of technological advanced machineries
Increase Dry Granulation production by 1 ton/hour with the Roll Compactor 300/330.
Maximum output
100 to 1000 Kg / hr*

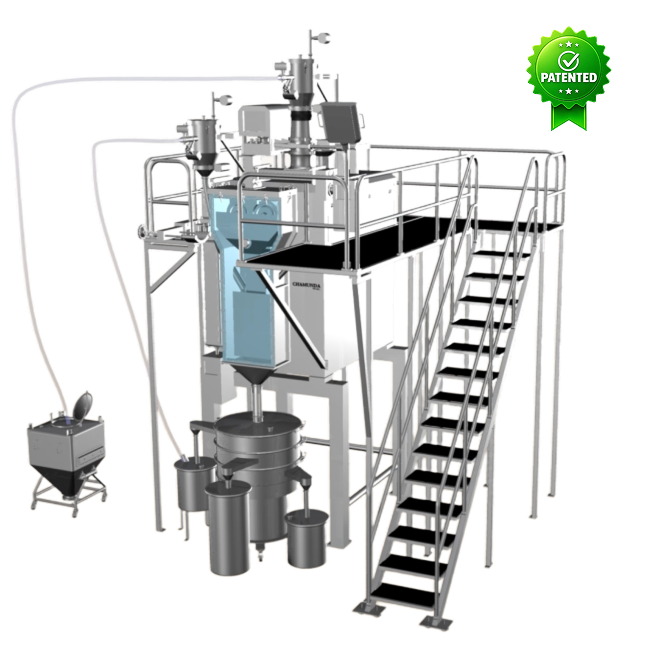

High-end Cantilever Roll Compactor with Cake Crusher & Two-Stage Granulator ensuring optimal utilization and minimal operating cost.
Maximum output
100 to 400 Kg / hr*
, ,
Versatile Cantilever Roller Compactor for the API , pharmaceutical , chemical , agriculture industry.Designed for efficient and automated dry granulation processes.
Maximum output
20 to 350 Kg / hr*
, , ,
Ongoing Support
Our Expert technical team is their for routine inspections , preventive maintenance , corrective maintenance ,emergency repairs and technical support.
Contact Us
Service and Spares
Genuine spares parts with quick delivery for maximum uptime and productivity.
